Processor P 60

Processor P 60

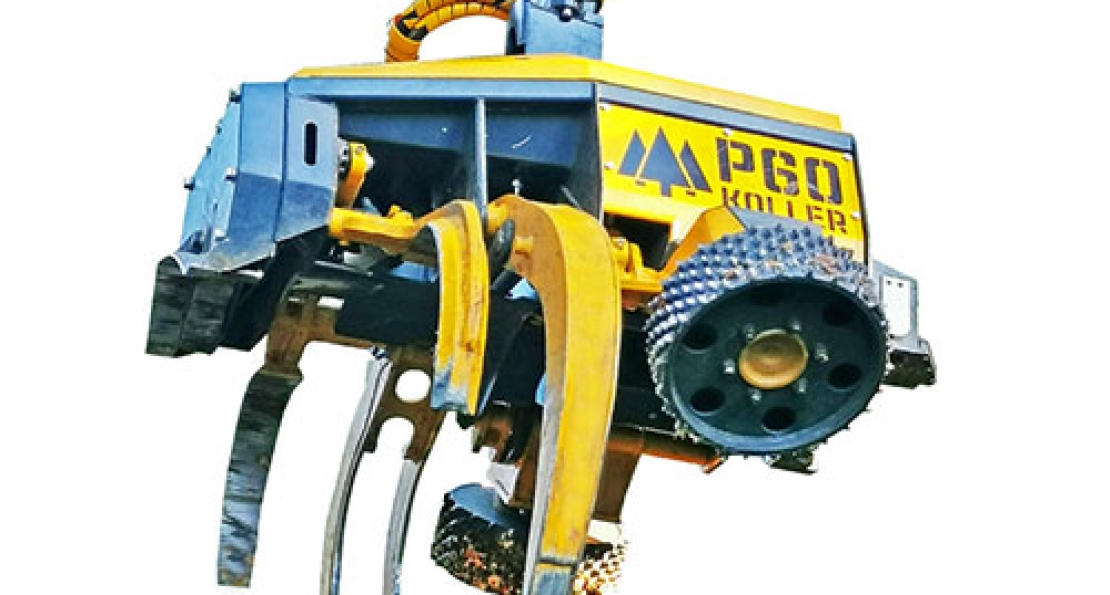

 The robust solution for alpine logging - the KOLLER processor head. Wide carrier range from mountain harvester up to excavator.

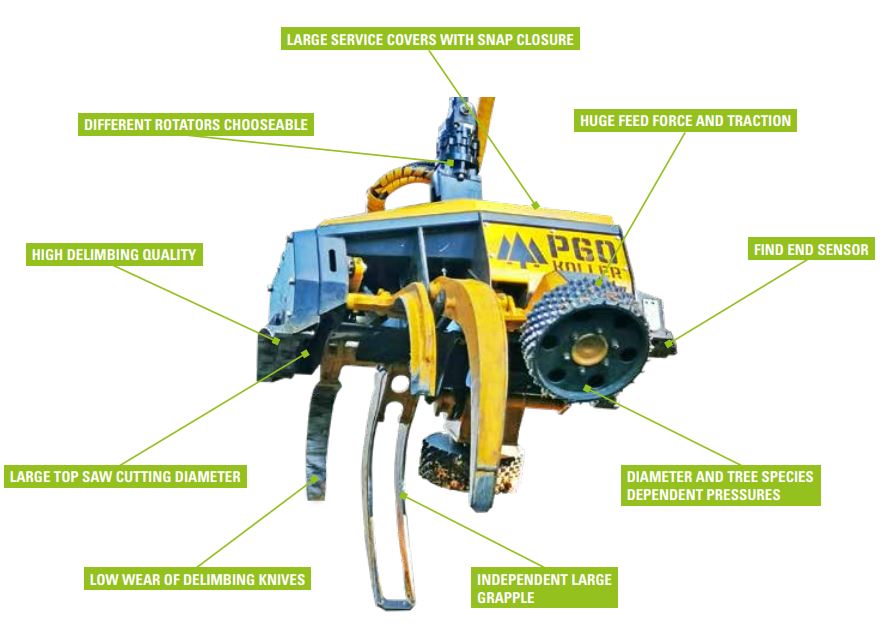

  • Independent large grapple - no blunting of delimbing knives while stacking
  • Grapple with parallel motion - logs can easily be picked out of the pile
  • High quality delimbing
  • Diameter and tree species dependent continuously variable pressure of delimbing knives and feed rollers
  • Huge feed force and traction
  • Compact & solid construction
  • Ideal center of gravity - head stays leveled even with activated tilt float
  • Mechanical limit stops for all moving parts
  • Easy maintenance
  • Large feed roller diameter
  • Large top saw cutting diameter
  • World wide proven and tested head control with intuitive touch-screen
  • Operator dependent assignment of keys
  • Precise lenght measurement
  • Find end sensor
  • Optional felling tilt arm


Processor P60
Grapple opening 1500 mm
Grapple cross section 0,7 m²
Cutting diameter 700 mm
Delimbing diameter 80 - 600 mm
Delimbing knifes 1 fixed, 4 moving
Feeding 4 rollers
Feed force max. 50 kN
Weight excl. rotator 1600 kg
Carrier size from 110 kW / 20 t
Optimal hydraulic supply 280 - 300 l/min, 280 - 330 bar
Top saw cutting diameter 450 mm

Product Catalog

Product Catalog

Koller P60 in der Starkholzaufarbeitung

Koller P60 bei der Aufarbeitung
